GeoSWMM 2D ModelingWorking with 2D Objects

Edit Object Properties

GeoSWMM enables the user to edit the 2D model object properties in a number of ways. The property editor can be opened in one of the following ways:

  1. Clicking on the (

    Edit object properties
    ) button for a selected 2D object in the SWMM data browser

  2. Double-clicking on a single object name in the SWMM data browser

Edit object properties 937-954

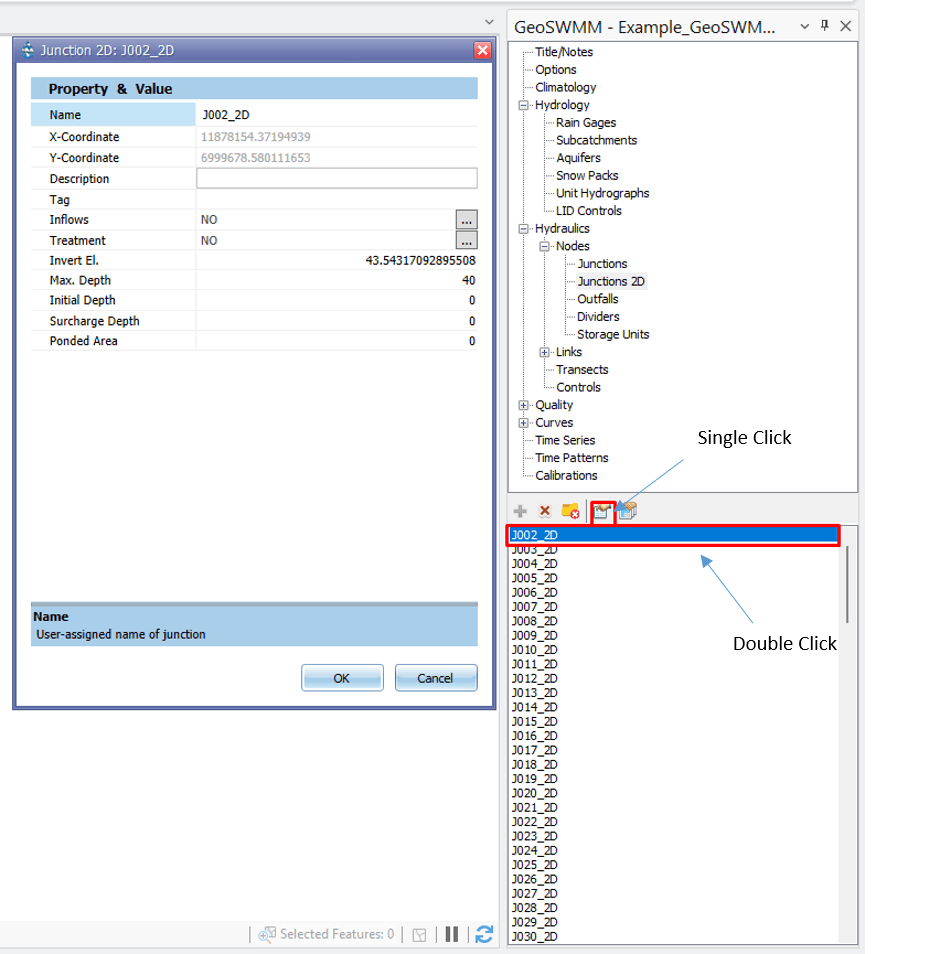

Fig.: Property Editor for Single 2D Object
  1. Clicking on the (
    Grid editor
    ) button in the SWMM data browser (to open the grid editor)

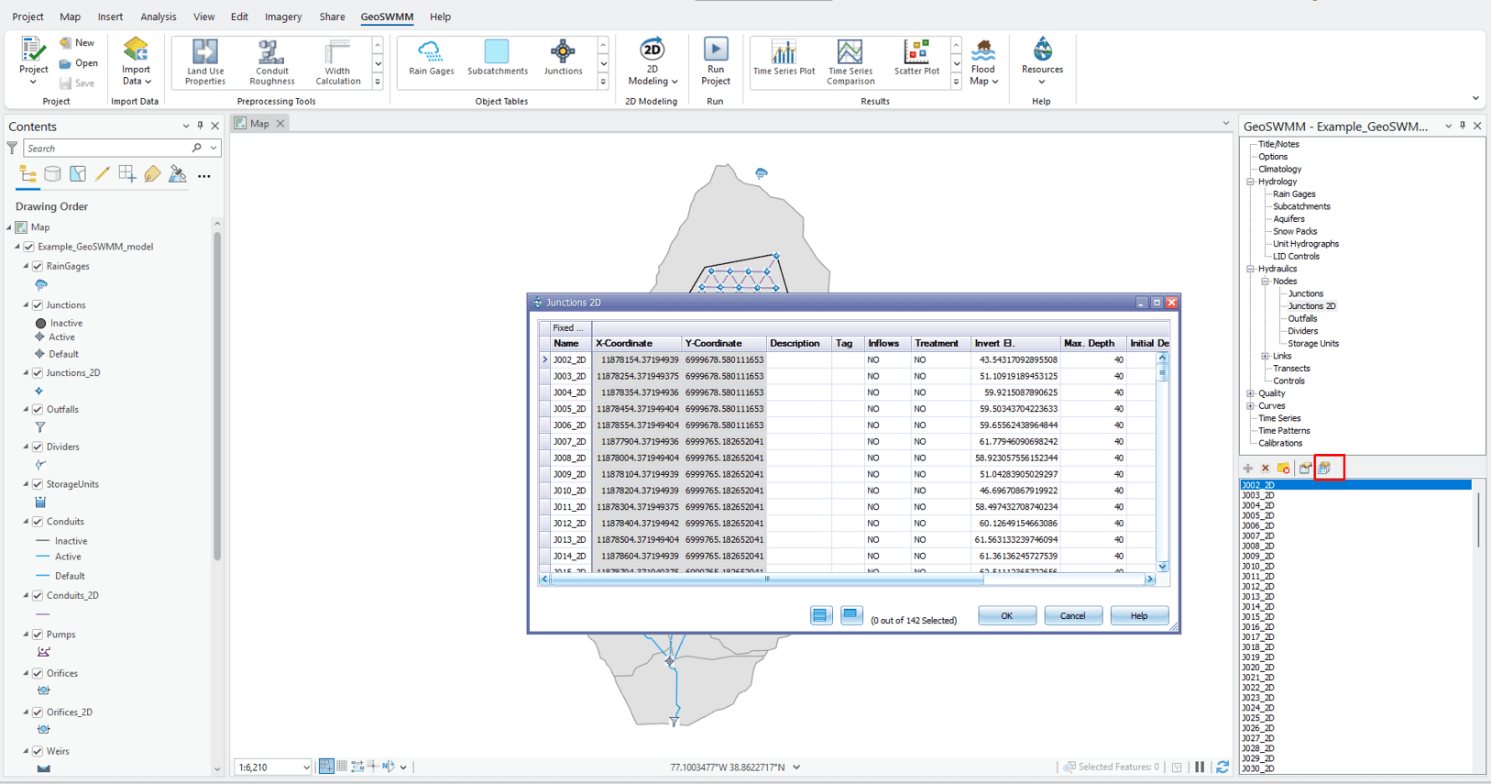

property editor in grid views
Fig.: Property Editor in Grid View
  1. Double-clicking on the 2D object category (e.g. Junction_2D) in the GeoSWMM Object Panel (to open the grid editor)
Double-clicking on the 2D object category
Fig: Double-clicking on the 2D object category
